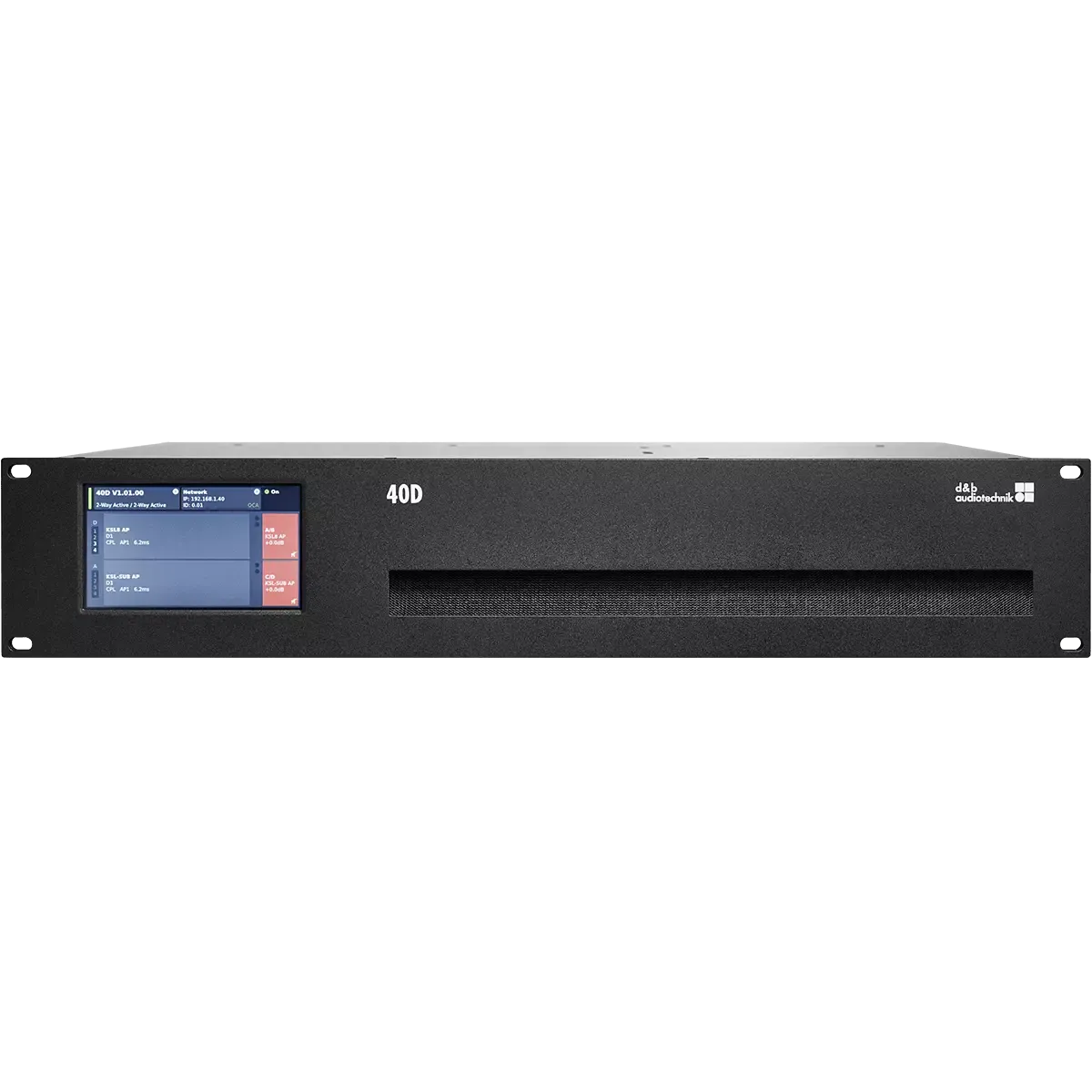

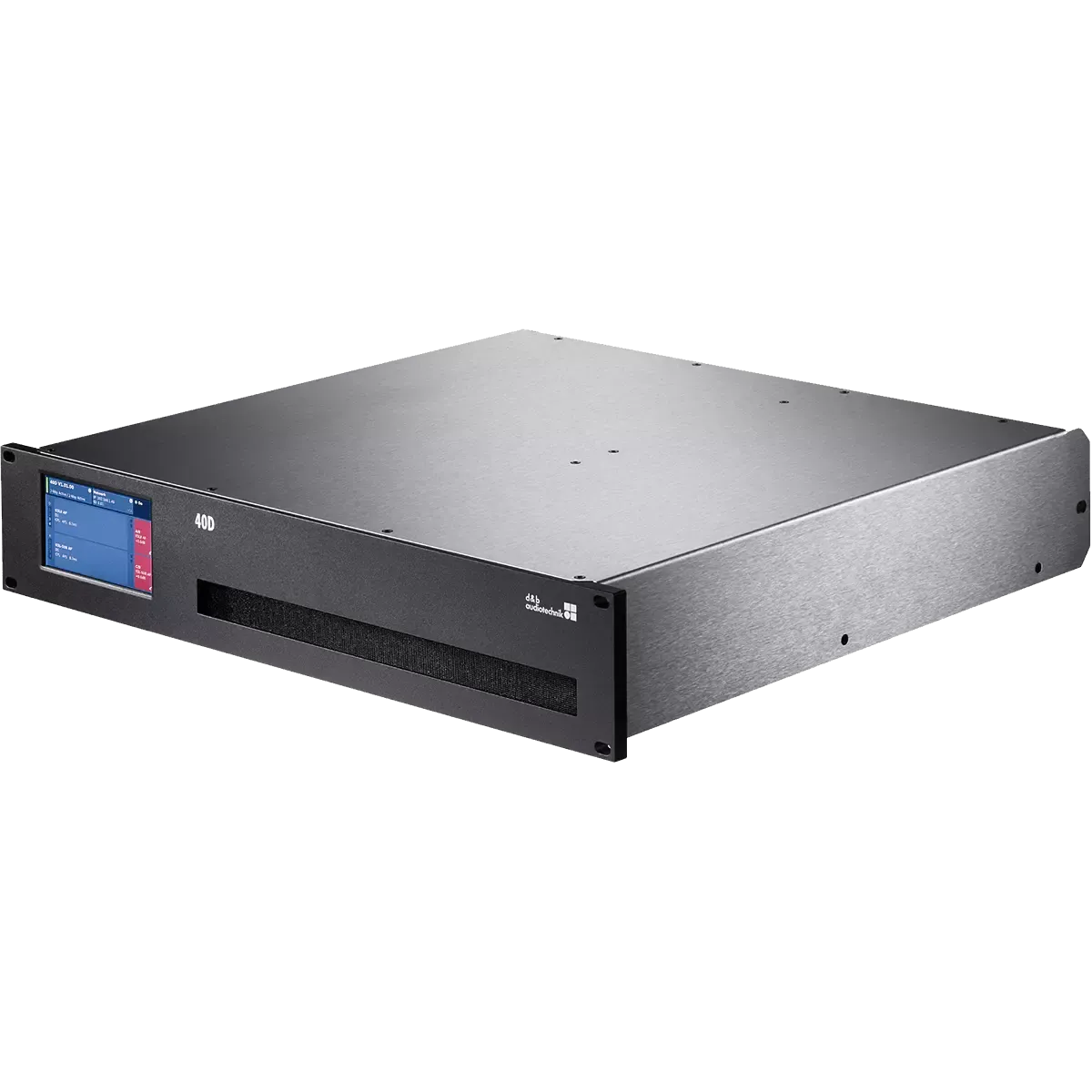

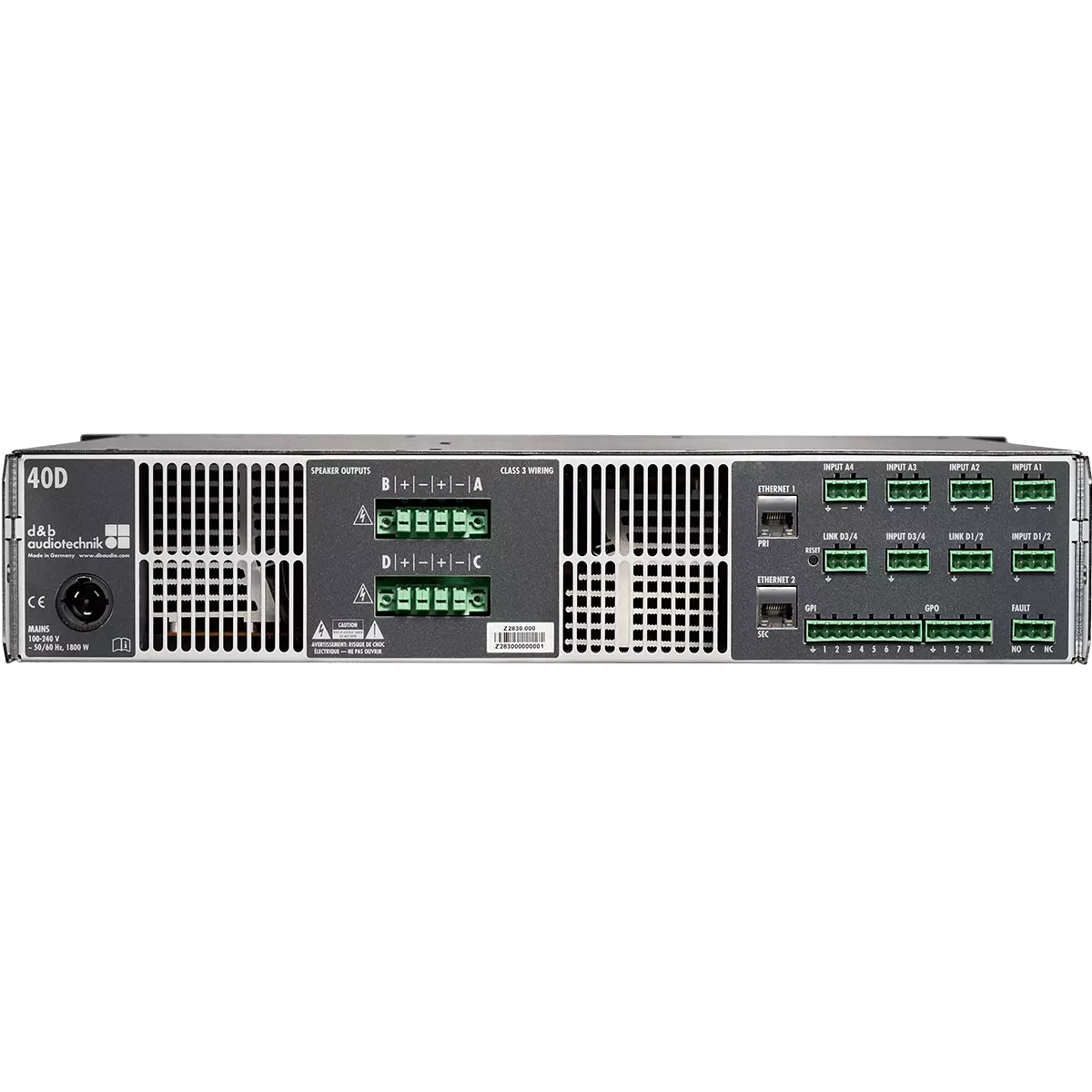

40D amplifier
Equalizer
2 x 16-band PEQ/notch/shelving/asymmetric
Latency analog and digital inputs
0.3 ms
Delay setting
0.3 ms – 10 s
Configurations
current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
Function switches
d&b loudspeaker specific circuits
Frequency generator
Pink noise or Sine wave 10 Hz – 20 kHz
- Maximum output power
4 x 2400/2000 W into 4/8 Ω - Monitoring display, Color TFT touchscreen, 4.3″ / 480 x 272 pixel
- 12 configurable GPIOs (8x GPI, 4x GPO)
- Milan-enabled
Equalizer
2 x 16-band PEQ/notch/shelving/asymmetric
Latency analog and digital inputs
0.3 ms
Delay setting
0.3 ms – 10 s
Configurations
current d&b loudspeakers (except GSL, SL-SUB, J-Series, M2)
Function switches
d&b loudspeaker specific circuits
Frequency generator
Pink noise or Sine wave 10 Hz – 20 kHz
