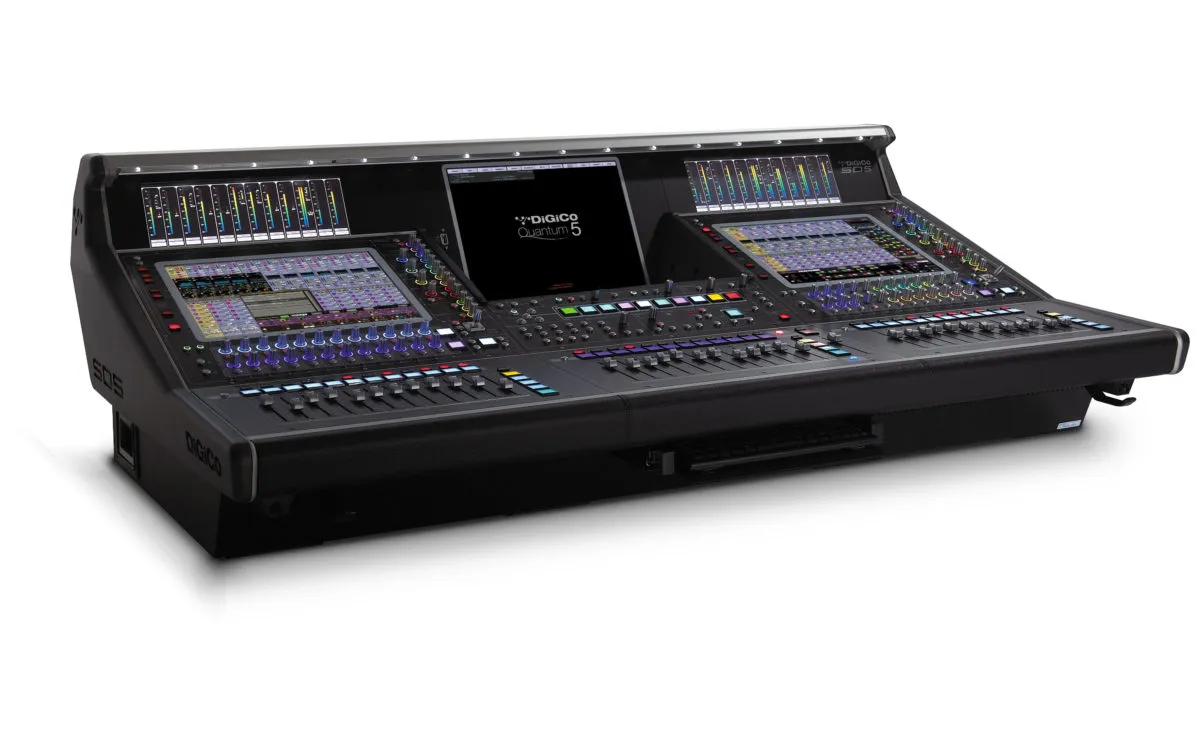

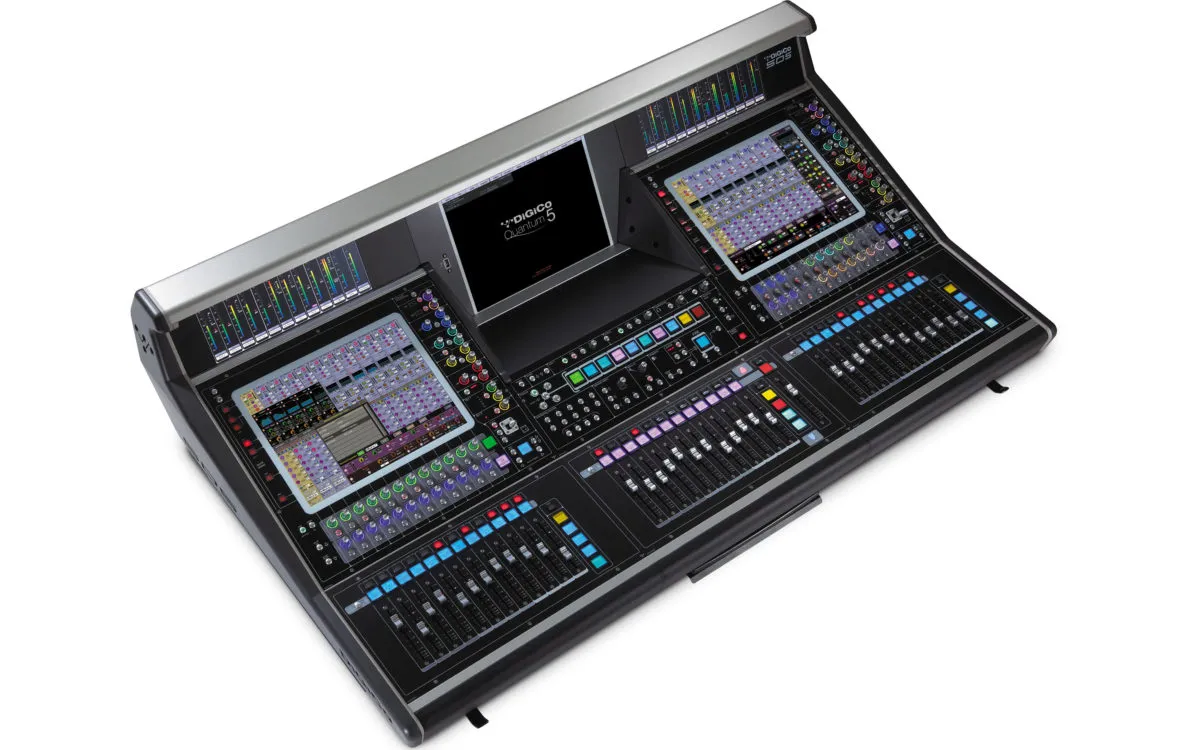

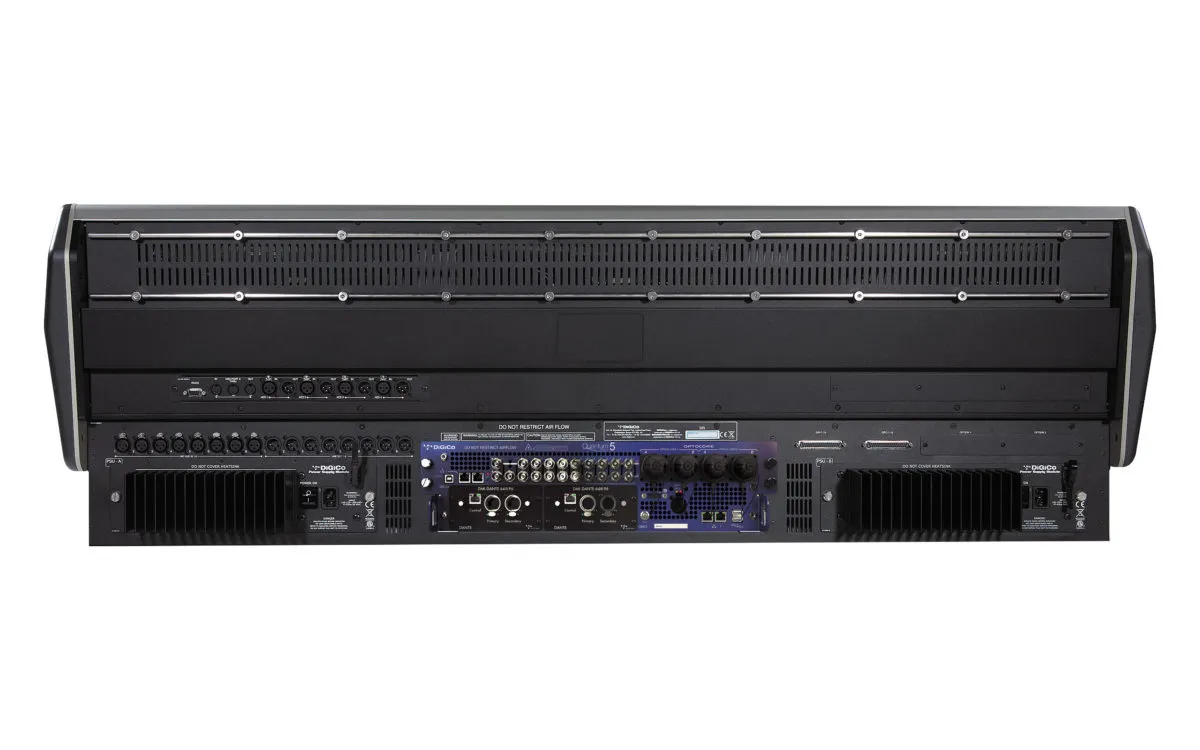

Quantum 5
- Faders 37 x 100mm touch-sensitive, motorised
- Screens 3 x 15” LCD high – resolution touch screens
- Meterbridge 2 x Custom Mounted LCD high-resolution TFT-LCD screens
- Internal PSU x 2
- Processing Channels Up to 330 (combination of Input Channels / Aux / Solo Group Busses)
- Busses Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
- Matrix Up to 36 Input / 36 Outputs with full processing
- Control Groups Up to 36, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq 32 x 32-band, Gain +/- 12dB
- Internal FX Up to 36 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer
- Local I/O 8 x mic/line I/O, 8 x AES I/O
- 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
- Standard Optocore (Dual Loop – Optional)
- Sampling rates 48kHz / 96kHz
- GPIO: 2 x DSub37
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Fitted as Standard
- Ext Sync Wordclock, AES, Video, MADI, Optocore
- https://digico.biz/consoles/quantum5/
Up to 256 Input Channels with full processing
Up to 128 Aux/Sub-Group busses with full processing
36 x 36 Matrix with full processing
48 Insertable Mustard processing strips
128 Nodal processing instances
- Faders 37 x 100mm touch-sensitive, motorised
- Screens 3 x 15” LCD high – resolution touch screens
- Meterbridge 2 x Custom Mounted LCD high-resolution TFT-LCD screens
- Internal PSU x 2
- Processing Channels Up to 330 (combination of Input Channels / Aux / Solo Group Busses)
- Busses Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
- Matrix Up to 36 Input / 36 Outputs with full processing
- Control Groups Up to 36, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq 32 x 32-band, Gain +/- 12dB
- Internal FX Up to 36 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer
- Local I/O 8 x mic/line I/O, 8 x AES I/O
- 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
- Standard Optocore (Dual Loop – Optional)
- Sampling rates 48kHz / 96kHz
- GPIO: 2 x DSub37
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Fitted as Standard
- Ext Sync Wordclock, AES, Video, MADI, Optocore
- https://digico.biz/consoles/quantum5/
