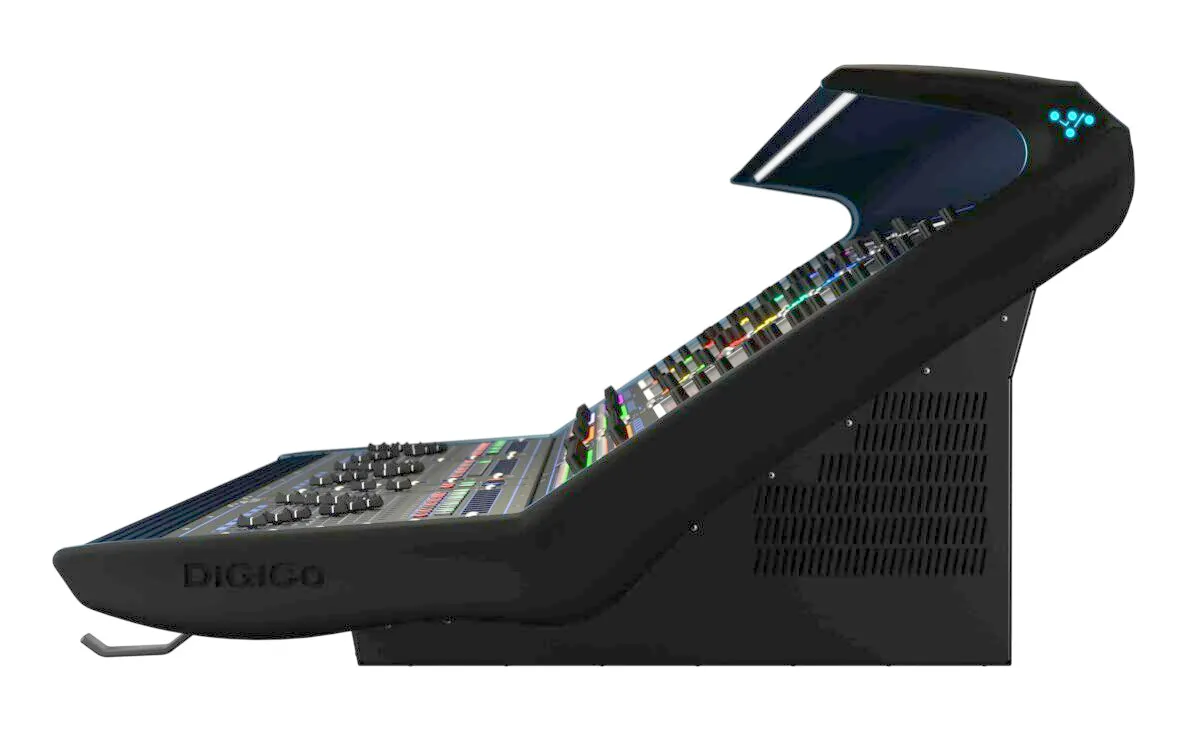

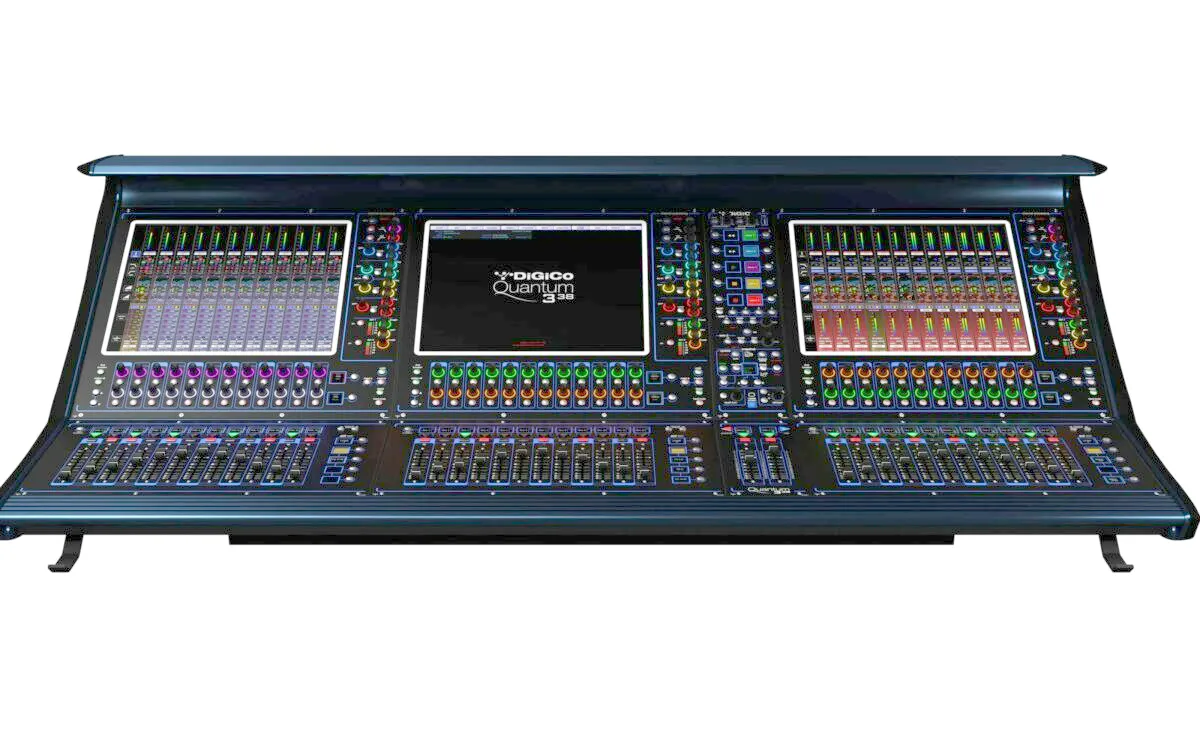

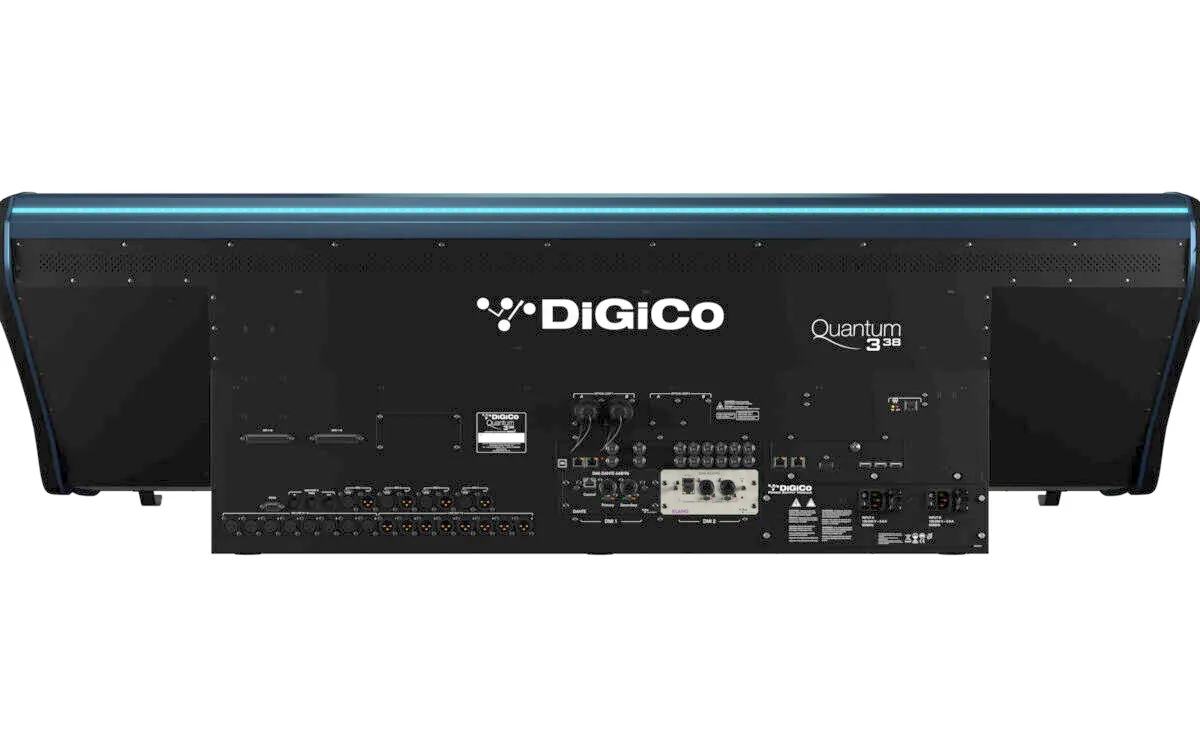

Quantum 338
- Faders: 38 x 100mm touch-sensitive, motorised
- Screens: 3 x 17” LCD high – brightness, high – resolution touch screens
- Input Channels: 128
- Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1
- Matrix: Up to 24 Input / 24 Outputs with full processing
- Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 24 x 32-band, Gain +/- 12dB
- Internal FX: Up to 24 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
- Spice Rack: 8 mono / 4 stereo Rack Slots
- Mustard Proc: 36 Processing Strips
- Nodal Proc: 64 Nodal Processors
- Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O
- MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity
- Optocore Interface: Optional (dual loop available)
- Sampling rates: 48kHz / 96kHz
- GPI/GPO: 16
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Optional
- Ext Sync: Wordclock, AES, MADI, Optocore
- https://digico.biz/consoles/quantum338/
128 Input Channels with full processing
64 Aux/Sub-Group busses with full processing
24 x 24 Matrix with full processing
36 Insertable Mustard processing strips
64 Nodal processing instances
True Solo function
70 TFT LCD displays
Ultimate Stadius 32-bit local I/O
- Faders: 38 x 100mm touch-sensitive, motorised
- Screens: 3 x 17” LCD high – brightness, high – resolution touch screens
- Input Channels: 128
- Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1
- Matrix: Up to 24 Input / 24 Outputs with full processing
- Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group
- Graphic Eq: 24 x 32-band, Gain +/- 12dB
- Internal FX: Up to 24 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
- Spice Rack: 8 mono / 4 stereo Rack Slots
- Mustard Proc: 36 Processing Strips
- Nodal Proc: 64 Nodal Processors
- Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O
- MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity
- Optocore Interface: Optional (dual loop available)
- Sampling rates: 48kHz / 96kHz
- GPI/GPO: 16
- DMI: 2 x DiGiCo Multichannel Interface
- Waves: Optional
- Ext Sync: Wordclock, AES, MADI, Optocore
- https://digico.biz/consoles/quantum338/
